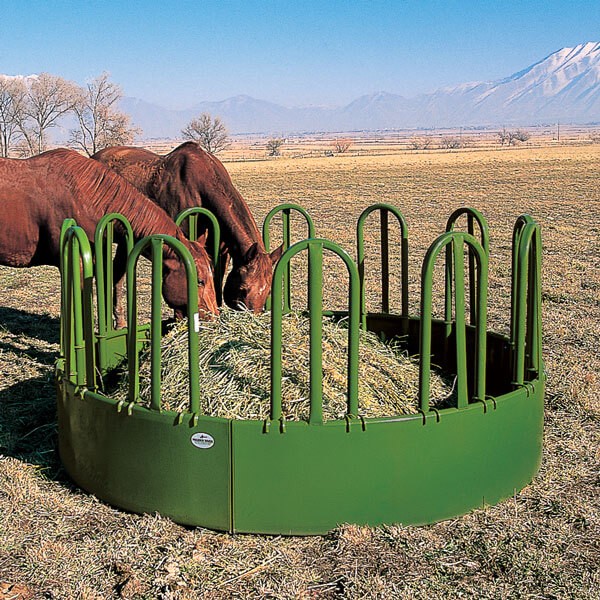

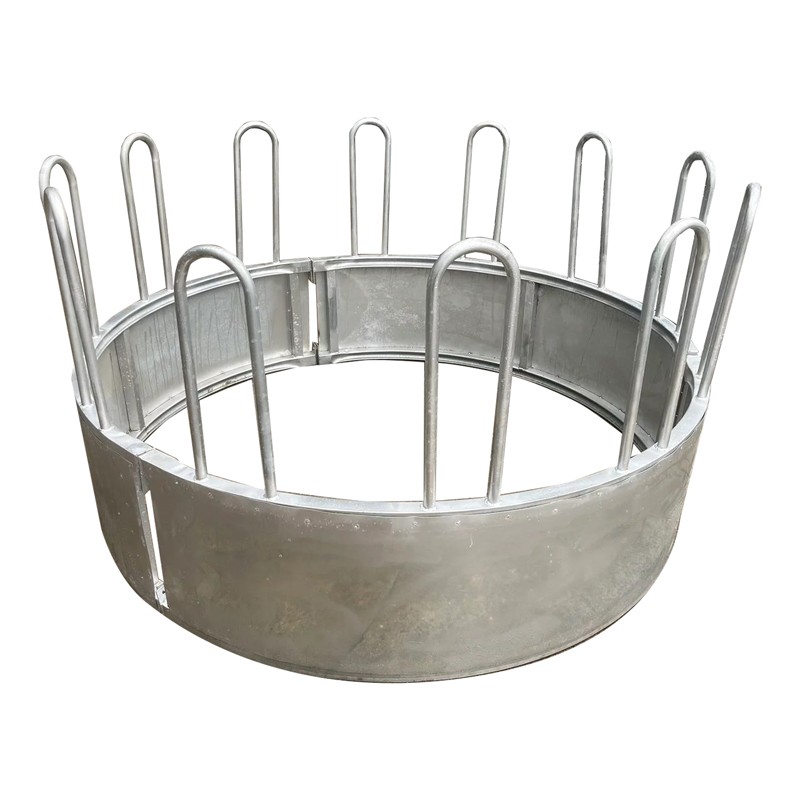

Round Bale Livestock Feeders

Design:

• The tombstones separate the livestock and reduces feed waste

• Three bent feeder sections pin together to create a solid stock feeder

• 12 feeding positions

Construction:

• 1.9” OD high tensile, 12-gauge tubing for the feeder frame

• 1.9” OD 14 gauge for the tombstone hoops

• Each of the hoops is filled with 1” OD 14-gauge

• Each corner and tombstone hoop is braced

• The 22” high base is sheeted on the outside with 16-gauge sheet metal

Specifications:

• Inside Diameter: 95.625”

• Outside Diameter: 113.625”

• Stanchion opening horizontal width: ~ 12.5”

• Feeder Height: 49.75”

• Feeder Weight: 390 lbs.

• Item 954

This feeder is preferred by ranchers with horned livestock. This is also a popular feeder for horses because there is no top horizontal hoop for the horses to wear their manes on.
